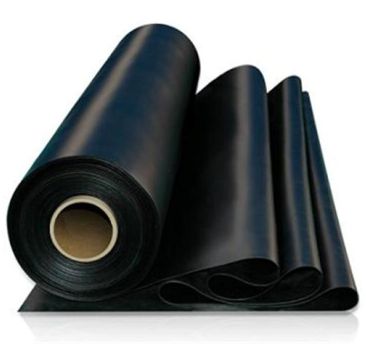

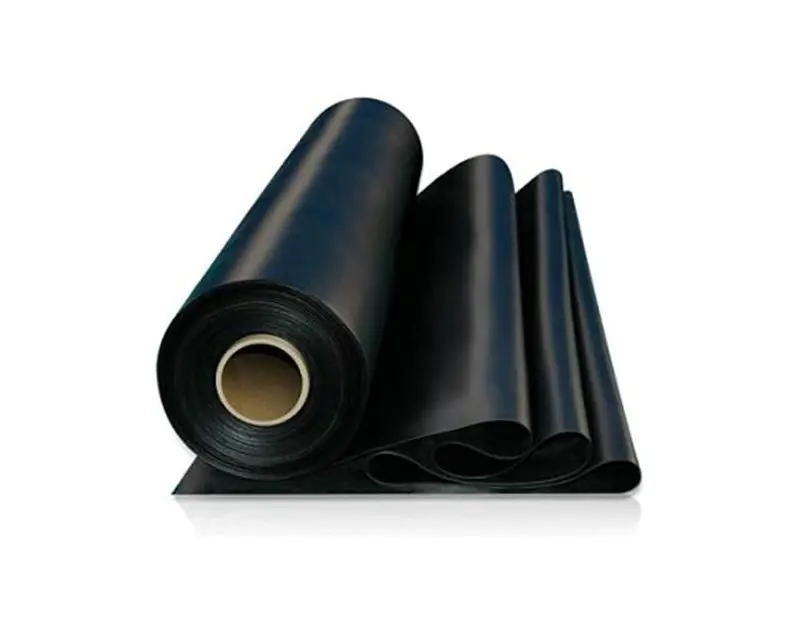

Rubber Sheet Insulation Protective PIB Sheeting Chalked 0.8mm x 1m x 15m Roll

Plysolene PIB Sheeting PIB0.815X1 (0.815m x 1m)

Premium Waterproofing & Cladding for Medium to Large Pipes & Ducting

Plysolene PIB0.815X1 is a high-performance UK-manufactured Polyisobutylene (PIB) thermoplastic sheeting designed for long-term weatherproofing and corrosion protection of insulated pipework, ventilation ducts, tanks, and industrial infrastructure. This 0.815m x 1m sheet offers the same trusted Plysolene quality — proven over 50+ years — in a versatile size ideal for medium to large-diameter applications.

Key Features

• Exceptional Durability: Fully resistant to UV, ozone, and weathering — no cracking, chalking, or embrittlement even after decades of exposure.
• Broad Temperature Performance: Remains flexible and effective from -30°C to +100°C — suitable for chilled water, hot water, steam, and process lines.
• Superior Chemical Resistance: Impervious to oils, acids, alkalis, salts, and industrial chemicals.
• Solvent Weldable: Forms permanent, monolithic seals via solvent welding — zero leaks, zero maintenance.
• Versatile Size: 0.815m width x 1m length — perfect for pipes up to 500mm OD (with insulation), HVAC ducts, and tank cladding.
• Thickness Options: 0.5mm, 0.8mm, 1.0mm, 1.2mm — select based on insulation depth and mechanical protection required.
• Colour & Finish: Black (external), White (internal); chalked or interleaved liner to prevent sticking during storage and installation.

Typical Applications

PIB0.815X1 is the professional choice for medium to large-scale industrial and commercial installations:

• Weatherproof jacketing on insulated pipework in power stations, refineries, and process plants
• Protective cladding for HVAC ventilation ducts and air handling units
• Waterproof membrane for tanks, bunds, and containment structures
• Corrosion and moisture barrier in marine, offshore, and coastal environments
• Long-term protection of above-ground and underground insulated pipelines

Why Choose Plysolene PIB0.815X1?

Backed by Plysolene’s 50+ years of expertise in PIB technology, this sheeting delivers unmatched longevity and reliability. Its non-absorbent, non-ageing polymer structure eliminates water ingress and CUI (corrosion under insulation). Solvent-welded joints create a fully sealed, vapour-tight barrier — reducing energy loss and maintenance costs for the life of the system.

Product Specifications

Plysolene PIB0.815X1 Installation Guide

Step-by-Step Instructions for Professional Results

Follow this guide to install PIB0.815X1 sheeting on medium to large pipes, ducts, and tanks. Use only Plysolene Solvent. Work in a ventilated area with PPE.

1. Preparation

1. Clean Surface: Insulation must be dry, smooth, and free from dust/oil. Wipe with a dry cloth.
2. Measure: Circumference = π × (pipe OD + 2 × insulation) + 100mm overlap. Add 10% for fittings.
3. Cut Sheets: Use sharp knife on flat surface. Score and fold for curves.
4. Conditions: Install >5°C. Warm materials to 15°C in cold weather.

2. Installation

1. Wrap: Start at 6 o’clock, wrap clockwise. Keep tension even.
2. Solvent: Brush thin coat on both overlaps. Open time: 1–2 mins.
3. Weld: Press firmly, roll with silicone roller. Overlap: 75mm min.
4. Stagger Joints: ≥150mm from previous. Seal all edges.
5. Fittings: Miter-cut gores for elbows. Use pre-formed boxes for valves.
6. End Caps: Cut and weld circular caps with 360° seal.

3. Finishing

1. Clean: Wipe excess solvent immediately.
2. Cure: 24h initial, 72h full. Do not disturb.
3. Inspect: No gaps, strong welds (test pull).

Detailed Solvent Welding Techniques for PIB0.815X1

Achieve 100% Monolithic Joints Every Time

Solvent Welding Process

1. Prep: Clean both surfaces. Warm to 15°C if cold.
2. Align: Mark overlap. Peel back the top sheet 150mm.
3. Apply: Thin even coat of Plysolene Solvent to both surfaces (~220 g/m²).
4. Bond: Press within 60 sec. Roll firmly outward from the centre.
5. Finish: Re-roll after 2 mins. Clamp flat joints 10 mins.

Joint Types

Temperature Adjustments

• Cold (<10°C): Warm materials, open time → 3 mins
• Hot (>25°C): Work in shade, open time → 45 secs

Troubleshooting

• Weak Weld: Clean + re-weld with new overlap
• Bubbles: Roll immediately, avoid over-solvent
• Delamination: Contamination — use IPA, dry fully

Safety

• Use Plysolene Solvent only. No smoking. Ventilate.
• Avoid bitumen, polystyrene, PVC contact.
