K-FLEX ST Elastomeric Insulation Sheet – Rolls (Standard & Self-Adhesive)
Self-Adhesive / 6mm
£902.10
Skip to product information
K-FLEX ST Elastomeric Insulation Sheet – Rolls (Standard & Self-Adhesive)
80106210107C
£902.10
Free UK delivery on orders over £100
Usually dispatched within 1–2 working days
Secure checkout · 30-day returns
How to measure?
Measure the Outside Diameter (OD)
Pipe insulation sizes refer to the outside diameter of the pipe — not the bore (internal diameter).
Wrap a tape measure around the pipe, divide by π (3.14) to get the OD. Or use calipers across the outside of the pipe directly.
Pipe insulation sizes refer to the outside diameter of the pipe — not the bore (internal diameter).
|←— OD —→|Wrap a tape measure around the pipe, divide by π (3.14) to get the OD. Or use calipers across the outside of the pipe directly.

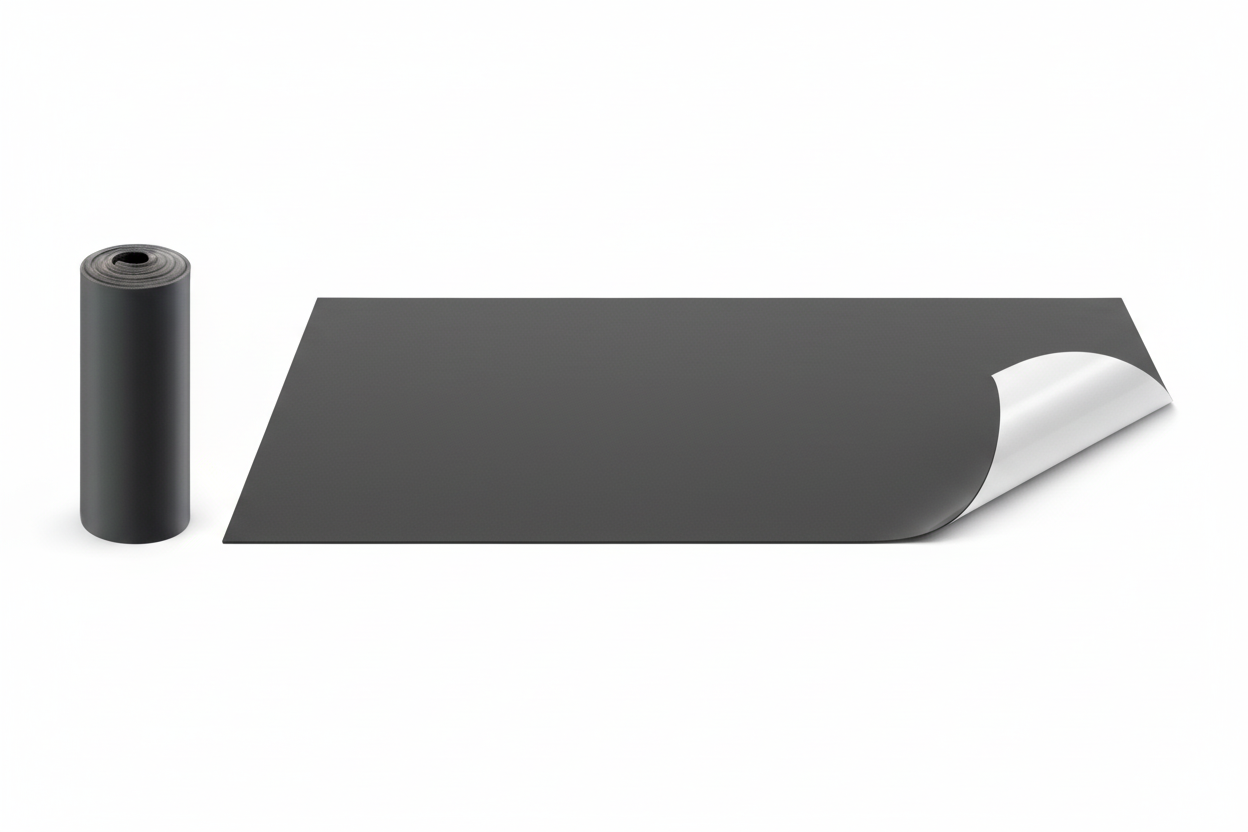

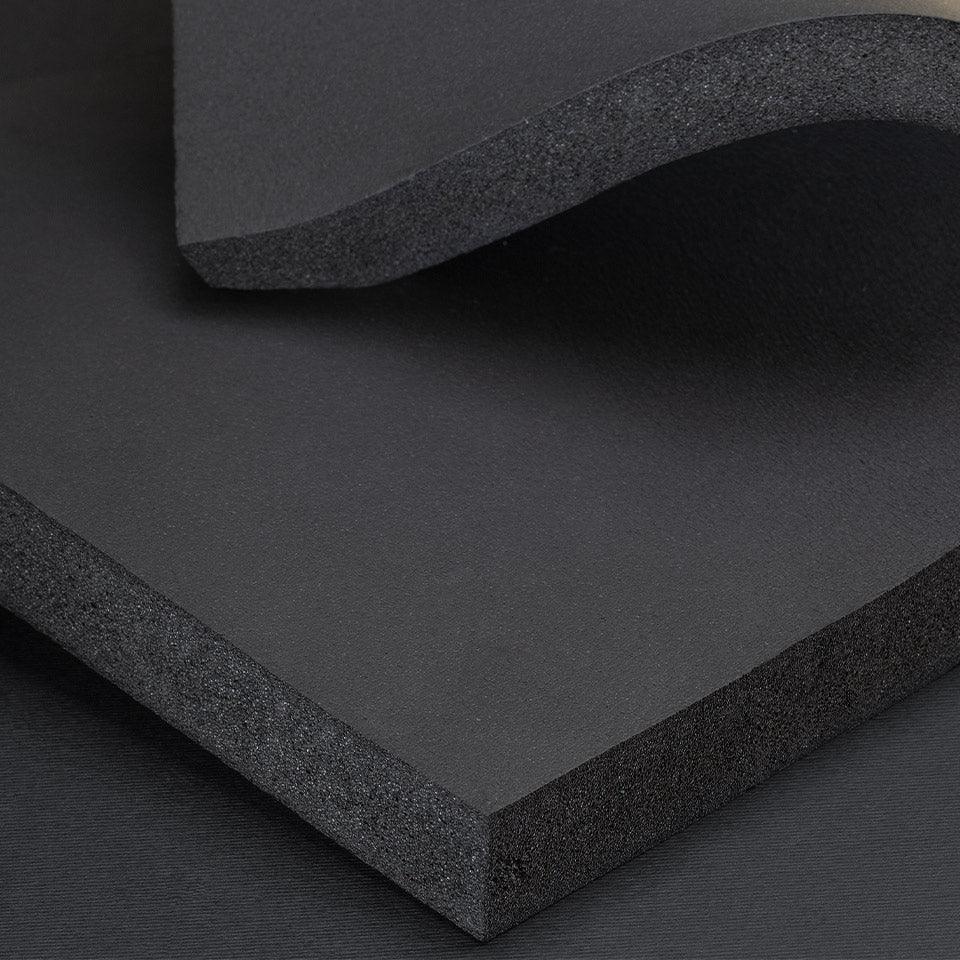

K-FLEX ST Elastomeric Insulation Sheet Rolls
K-FLEX ST is a flexible closed-cell elastomeric foam insulation for refrigeration, air-conditioning, heating, plumbing, tanks, pipe fittings and ductwork. This listing includes both standard K-FLEX ST sheet rolls and self-adhesive K-FLEX ST AD sheet rolls.
Product Details
- Brand: K-FLEX
- Range: ST / ST AD
- Material: Flexible closed-cell elastomeric foam
- Colour: Black
- Standard: EN 14304
- Standard K-FLEX ST sheet operating temperature: -165°C to +85°C
- Self-adhesive K-FLEX ST AD sheet operating temperature: -40°C to +85°C
- Thermal conductivity at 0°C: 0.033 W/(m·K) for thicknesses up to 25mm; 0.036 W/(m·K) for thicknesses over 25mm
- Water-vapour diffusion resistance factor (μ): ≥ 10,000 up to 25mm thickness; ≥ 7,000 over 25mm
- Reaction to fire: Euroclass B-s3,d0 for K-FLEX ST sheet and K-FLEX ST AD sheet
- Available in standard and factory self-adhesive formats
- Suitable for flat surfaces, tanks, ducts, vessels, fittings and fabricated insulation details
Thickness Options
Standard rolls are available in 3mm, 6mm, 10mm, 13mm, 19mm, 25mm, 32mm, 40mm and 50mm thicknesses. Self-adhesive rolls are available in 6mm, 10mm, 13mm, 19mm, 25mm, 32mm and 40mm thicknesses.
Installation
Select the required thickness and backing type for the application. Standard sheet should be installed with a compatible K-FLEX adhesive where bonding is required. Self-adhesive ST AD sheet has a factory-applied adhesive backing for faster installation on suitable clean, dry surfaces.
