Armaflex Duct Foil Covered Insulation Sheet
ADU-09MM/EA-L
£1,085.31
inc VAT
£904.43
ex VAT
Back order – expected to dispatch by Thu 26 Nov (usually 3–5 working days)
Our dispatch dates are real – worked out from our suppliers’ current lead times, never rounded down to win the sale.
Key specifications
- Fire rating
- Euroclass E (EN 13501-1)
- Standard
- EN 14304
Source: manufacturer's technical datasheet
Free UK delivery on orders over £100
In-stock items usually dispatched within 3-5 working days
Secure checkout · 30-day returns
How to measure?
Measure the Outside Diameter (OD)
Pipe insulation sizes refer to the outside diameter of the pipe — not the bore (internal diameter).
Wrap a tape measure around the pipe, divide by π (3.14) to get the OD. Or use calipers across the outside of the pipe directly.
Pipe insulation sizes refer to the outside diameter of the pipe — not the bore (internal diameter).
|←— OD —→|Wrap a tape measure around the pipe, divide by π (3.14) to get the OD. Or use calipers across the outside of the pipe directly.

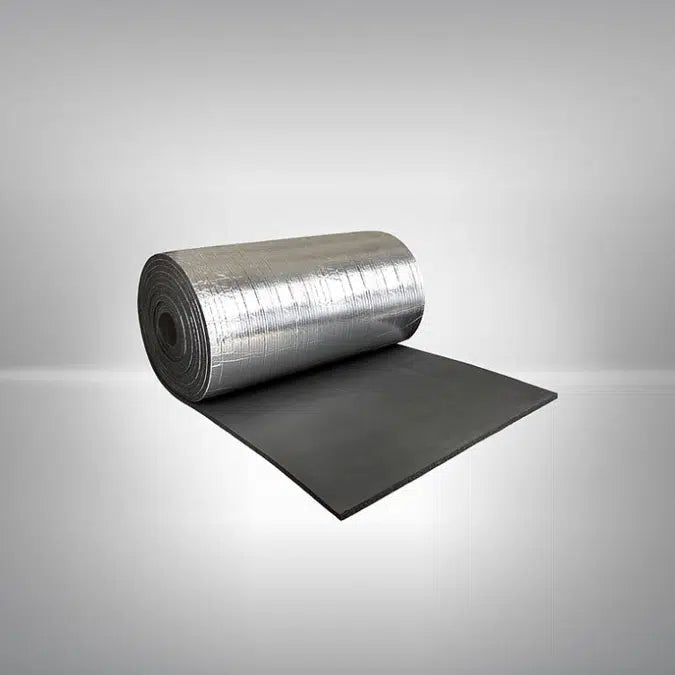

Class O Armaflex Duct AL is Class O Armaflex sheet with a bright aluminium foil covering pre-applied.
The clean, dust and fibre free, duct insulation with a professional finish. Being highly flexible, Class O Armaflex Duct sheet can be installed on both rectangular and circular ductwork matching contours exactly. As a dust and fibre free, formaldehyde free product with an ODP of 0, Class O Armaflex Duct is suitable for use on ductwork in offices, schools and hospitals.
The benefits of specifying Class O Armaflex Duct AL:
- Compliant with Building Regulations Part L* energy saving legislation
- Suitable for rectangular and circular ductwork
- No piercing of ductwork required
- High flexibility for ease of fitting
- Matching bracket covers and tape eliminate thermal bridges and give a professional finish
Application Areas:
- Rectangular ductwork
- Circular ductwork
- Properties Values Remarks:
- Material Aluminium foil covered sheets made of foamed nitrile rubber
- Max. Surface Temperature +110 C (For temperatures above +110 C, please consult our Technical Department.Min.)
- Surface Temperature -50 C
- Thermal Conductivity at 0 C 0.036 W/(m)
Roll sizes
| Type | Thickness (mm) | Width (m) | Length (m) | Coverage (m²) |
|---|---|---|---|---|
| Standard | 9 | 1.5 | 20 | 30 |
| Standard | 13 | 1.5 | 16 | 24 |
| Standard | 19 | 1.5 | 12 | 18 |
| Standard | 25 | 1.5 | 8 | 12 |
| Self Adhesive | 9 | 1.5 | 20 | 30 |
| Self Adhesive | 13 | 1.5 | 16 | 24 |
| Self Adhesive | 19 | 1.5 | 12 | 18 |
| Self Adhesive | 25 | 1.5 | 8 | 12 |
