Outdoor Pipe Insulation
Outdoor pipe insulation, also known as external pipe insulation or weatherproof pipe lagging, is specifically designed to protect exposed pipework from UV radiation, frost, rain and temperature extremes. Unlike standard indoor insulation, outdoor insulation must resist weathering while maintaining its thermal performance throughout the year.
At Pipelagging, we stock a comprehensive range of weatherproof pipe insulation for external pipework, including UV-stabilised elastomeric foam, protective coated products and cladding systems. Whether you're insulating heat pump pipework, solar thermal systems, boiler condensate pipes or exposed commercial HVAC services, we have the right product for your application.
Choose the Right Outdoor Pipe Insulation
| Application | Recommended Product | Why |
|---|---|---|
| Air source heat pumps | Armaflex HT Solar | UV resistant and high-temperature capable |
| Outdoor heating pipework | Armaflex HT Solar | Weather resistant, wide temperature range |
| Exposed condensate pipes | Armaflex HT Solar | Helps reduce freezing risk, UV stable |
| Solar thermal systems | Armaflex HT Solar | Handles higher operating temperatures up to 150°C |
| Industrial external pipework | PVC-clad insulation | Maximum durability and mechanical protection |
Outdoor Pipe Insulation vs Standard Pipe Insulation
Standard indoor elastomeric foam pipe insulation is not UV-stabilised. When exposed to direct sunlight, the surface degrades, becomes brittle and eventually cracks — allowing moisture ingress and a significant reduction in thermal performance. Simply taking standard indoor insulation outdoors without protection will shorten its service life considerably, often within a single season in direct sunlight.
Outdoor pipe insulation is either manufactured specifically for external exposure (such as Armaflex HT Solar, which contains UV stabilisers within the foam matrix) or protected with a factory-applied coating or cladding system. The key differences are:
- UV stability — outdoor insulation resists solar degradation; standard indoor insulation does not
- Temperature range — outdoor products such as Armaflex HT Solar are rated to +150°C, suitable for solar thermal and heat pump applications where standard foam is not
- Weatherproofing — outdoor products are designed to resist rain, frost and temperature cycling without loss of performance
- Mechanical durability — coated and clad products offer additional resistance to physical damage in exposed locations
Outdoor Pipe Insulation Products
| Product | UV Protection | Max Temp | Best For |
|---|---|---|---|
| Armaflex HT Solar | ★★★★★ | 150°C | Heat pumps, solar thermal, exposed HVAC |
| Armaflex Tuffcoat | ★★★★★ | 110°C | Commercial outdoor and underground pipework |
| PVC / Aluminium Cladding | ★★★★★ | Any | Industrial and commercial long-term installations |

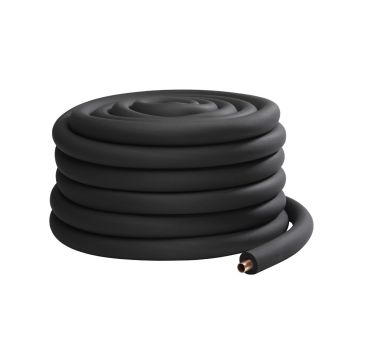

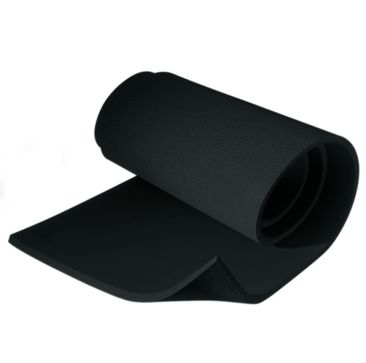

- Armaflex HT Solar Pipe Insulation — The market-leading outdoor pipe insulation for solar thermal and heat pump systems. UV-stabilised, high-temperature resistant up to 150°C, and available in pre-slit tube, coil and sheet form.
- Armaflex Tuffcoat — Standard Armaflex with a factory-applied tough protective outer coating for underground and exposed above-ground pipework. Resistant to mechanical damage, UV and moisture ingress.
- Pipe Insulation with PVC or Aluminium Cladding — Mineral wool or foam pipe insulation finished with a weatherproof cladding jacket for long-term outdoor protection. Suitable for industrial and commercial plant room pipework and district heating.
- Self-Seal Outdoor Insulation — Pre-slit pipe insulation with factory-applied adhesive for fast outdoor installation without additional adhesives or tape.
Heat Pump Pipe Insulation
With the rapid growth of air source and ground source heat pump installations across the UK, outdoor pipe insulation for heat pump systems has become one of the most common enquiries we receive. Heat pump pipework presents specific insulation challenges that differ from standard heating systems.
Air Source Heat Pump (ASHP) Pipe Insulation
ASHP installations typically include exposed refrigerant or heating pipework running between the outdoor unit and the internal heat exchanger. This pipework operates across a wide temperature range and is permanently exposed to UV, rain and frost. Standard pipe insulation is not suitable — a UV-stabilised, closed-cell product such as Armaflex HT Solar is required to maintain performance and prevent degradation.
Ground Source Heat Pump (GSHP) Pipe Insulation
GSHP systems typically use buried ground loops, but the pipework connecting the ground loop to the heat pump unit often passes through exposed or semi-exposed areas. Where pipework is above ground, UV-resistant insulation is required. Where pipework is buried, a product with good moisture resistance and mechanical durability such as Armaflex Tuffcoat is recommended.
Key requirements for heat pump pipe insulation:
- UV resistance — essential for any above-ground pipework exposed to sunlight
- Condensation control — heat pump pipework can operate at low temperatures, making closed-cell insulation with high vapour resistance essential to prevent surface condensation
- Frost protection — adequate wall thickness protects pipework during cold weather shutdowns
- Temperature range — insulation must be rated for the full operating temperature range of the system, including defrost cycles
- Wall thickness — typically 19mm–25mm for domestic heat pump pipework; refer to manufacturer guidance and MCS installation standards
Should Outdoor Pipe Insulation Be Clad?
Cladding is an outer protective jacket — typically PVC or aluminium — fitted over pipe insulation to provide additional protection in exposed locations. It is not always required, but is strongly recommended in the following situations:
- PVC cladding — lightweight, cost-effective and suitable for most commercial outdoor applications. Provides UV protection, weatherproofing and a clean finished appearance. Commonly used on rooftop plant, external HVAC pipework and district heating above-ground sections.
- Aluminium cladding — more durable than PVC and suitable for high-traffic areas or locations where mechanical damage is a risk. Also used where a higher-specification finish is required, such as on visible plant room pipework.
- Vandal protection — in publicly accessible locations, aluminium cladding provides a level of resistance to deliberate damage that foam insulation alone cannot offer.
- Long-term UV resistance — even UV-stabilised foam products benefit from cladding in very high UV exposure environments, as cladding eliminates UV contact with the insulation surface entirely.
For domestic heat pump and solar thermal installations, UV-stabilised foam such as Armaflex HT Solar is typically sufficient without cladding. For commercial and industrial outdoor pipework, cladding is generally recommended as best practice.
Outdoor Pipe Insulation for Frost Protection
Insulating outdoor pipes significantly reduces the risk of freezing during winter by slowing heat loss from the pipe contents to the surrounding air. Exposed pipework most at risk includes boiler condensate discharge pipes, external water supply pipes, heating flow and return pipes to outbuildings, and exposed pipework in unheated plant rooms or roof spaces.
For effective frost protection, insulation must be correctly sized for the pipe, joints must be fully sealed, and wall thickness should be appropriate for the local climate. In severe weather conditions, trace heating may be required in addition to insulation. See our Wall Thickness Guide for thickness recommendations.
External Pipe Insulation
The terms outdoor pipe insulation, external pipe insulation and outdoor pipe lagging are used interchangeably across the UK building services industry. All refer to the same requirement: pipe insulation that is suitable for use in exposed outdoor environments where UV exposure, weathering and temperature extremes are a factor. Whether you're searching for external pipe insulation for a domestic heat pump, outdoor pipe lagging for a commercial HVAC installation, or UV-resistant insulation for a solar thermal system, the product requirements are the same.
Knowledge Hub — Outdoor Pipe Insulation Guides
- Can Pipe Insulation Be Used Outside? — Full guide to outdoor pipe lagging
- Best Outdoor Pipe Insulation for UK Weather — Product comparison for exposed applications
- Armaflex Tuffcoat Guide — How to use Tuffcoat for outdoor pipe insulation
- The Ultimate Guide to Pipe Lagging — Comprehensive pipe insulation reference
- Pipe Insulation Wall Thickness Guide — Choosing the right wall thickness for your application
- BS 5422 Pipe Insulation Standards Guide — Compliance and thickness specification
- Condensation on Pipes — Causes, prevention and the right insulation
- Pipe Insulation — Full range of pipe insulation products
- Refrigeration Pipe Insulation — Closed-cell foam for refrigerant pipework
Frequently Asked Questions
Can standard Armaflex be used outdoors?
Standard Armaflex should not be left exposed to UV light without protection. The surface will degrade, become brittle and crack over time. For outdoor installations, use a UV-stabilised product such as Armaflex HT Solar, apply a protective coating such as Tuffcoat, or protect the insulation with a PVC or aluminium cladding system.
What is the best insulation for outdoor pipes?
The best product depends on the application. For solar thermal and heat pump pipework, Armaflex HT Solar is the most widely specified product due to its UV resistance and high-temperature performance (up to 150°C). For general outdoor pipework at lower temperatures, Armaflex Tuffcoat or standard insulation with cladding are cost-effective alternatives.
Does outdoor pipe insulation stop pipes freezing?
Outdoor insulation significantly reduces the risk of freezing by slowing heat loss, but cannot guarantee frost protection in all conditions. Correct insulation thickness, fully sealed joints and appropriate product selection are all important. In very cold conditions or for critical pipework, trace heating may be required in addition to insulation.
Can outdoor pipe insulation be used on heat pumps?
Yes. UV-resistant outdoor pipe insulation is commonly used on air source and ground source heat pump pipework to improve system efficiency and protect exposed services from weather degradation. Armaflex HT Solar is the most widely used product for this application.
What temperature rating do I need for outdoor pipe insulation?
For most outdoor heating and hot water pipework, standard elastomeric foam rated to +105°C is sufficient. For solar thermal systems and heat pump pipework where pipe temperatures can exceed 100°C, you need a high-temperature product such as Armaflex HT Solar, which is rated to +150°C.
How do I weatherproof outdoor pipe insulation joints?
All longitudinal seams and butt joints must be sealed with the appropriate adhesive for the insulation type. For Armaflex products, use Armaflex 520 adhesive. Joints should be fully bonded and pressed firmly together. In exposed locations, additional protection with self-amalgamating tape or cladding is recommended.
