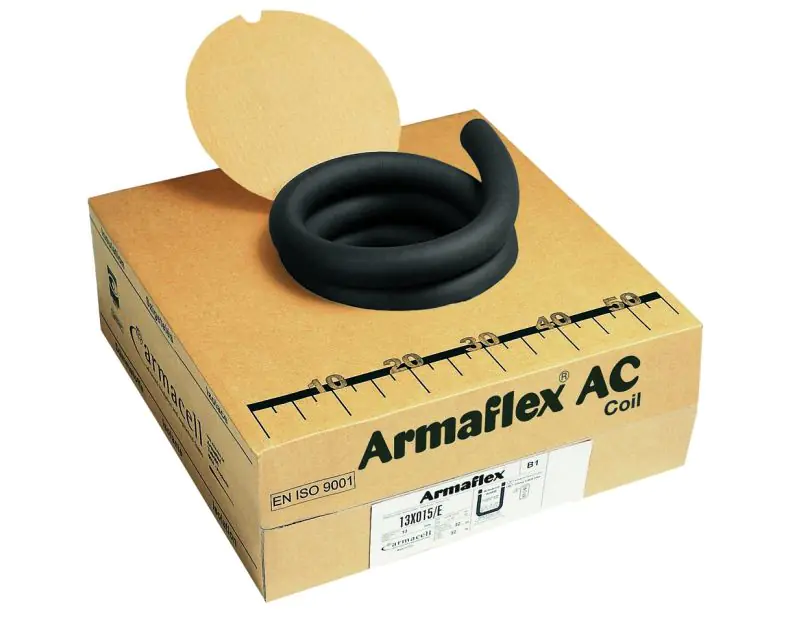

10mm Diameter 9mm Wall Armaflex Class O Pipe Insulation 50 metre length Boxed Coil

Class O Armaflex is dust-free, fibre-free and CFC free with an ODP of zero. Its inherent attributes and combination of properties make Armaflex a highly efficient method of insulating hot and cold water services, chilled water lines, heating systems, air conditioning ductwork and refrigerated pipework for condensation control, energy conservation and frost protection.

Installation of Class O Pipe Insulation can be carried out as the job progresses by sleeving onto pipes. Class O Pipe Insulation tube is available in 2-metre lengths, Sheet and as continuous coils in a box, meaning less cutting, less waste. In sheet form, Class O Pipe Insulation is the ideal choice for insulating tanks, ductwork, large pipes or irregular shapes.

Black Nitrile Foam Closed-Cell Insulation Soundproofing Pipe Insulation.

Armaflex Class O - The professional insulation that prevents condensation and energy losses.

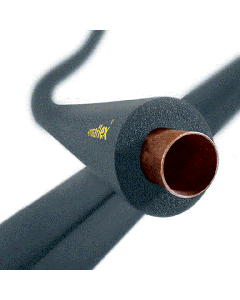

Class O is the flexible, closed-cell, elastomeric, nitrile rubber insulation that offers reliable protection against condensation and effectively prevents energy loss.
A highly efficient method of insulating hot and cold water services, chilled water lines, heating systems, air conditioning ductwork and refrigerated pipework for frost protection, energy conservation and condensation control. Armaflex is dust-free, fibre-free and CFC free with an ODP of zero, which makes an environmentally friendly product.
The competitive advantage of specifying class O.
Built in vapour barrier prevents condensation.
Armacell Armaflex Reduces energy losses by up to 87%.
Lightweight and flexible, quick and easy installation with low maintenance requirements, resulting in time and cost savings.
Excellent resistance to the effects of ozone, oil and chemicals (consult product test list).

Application areas.

• Process work.
• Hot and cold water services.
• Chilled water lines.
• Heating systems.
• Air conditioning ductwork.
• Refrigeration pipework and ancillary equipment.

Properties values remarks.

• Material foamed nitrile rubber.
• Max. Surface temperature +105c.
• Max. Temperature for flat surface +85c.

Class O is a flexible closed cell elastomeric sheet with a class O fire rating and energy-saving thermal performance. Being a closed-cell material requires no external vapour barrier and will not absorb moisture by wicking.
Class O has the unique capability of providing significant sound absorption while remaining completely closed cell. Aerodynamic and fan noise within the ducting will be reduced when it is used as an internal lining due to its excellent thermal values.
